The Key to Stability and Connection: Expansion Anchor Bolt

Understanding the Basic Structure and Working Principle

An expansion anchor bolt is a critical component in various construction and engineering applications, known for its ability to provide robust and secure connections. At its core, an expansion anchor bolt consists of a metal rod and expansion sleeves, which work synergistically to ensure stability and reliability in fastening applications.

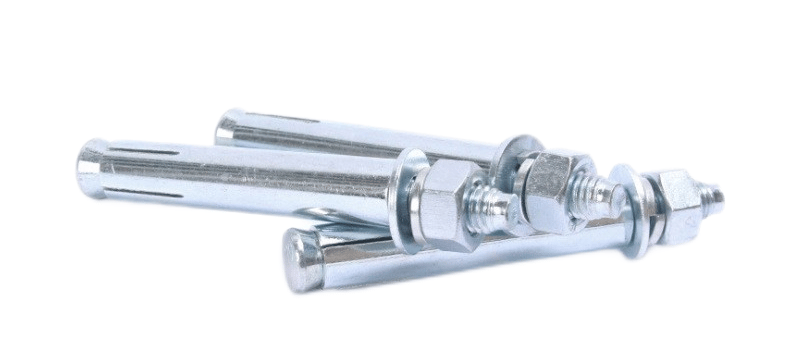

The primary structure of an expansion anchor bolt begins with the metal rod, typically made from steel, which offers strength and durability. This rod is threaded, allowing for a nut or other fastening device to be attached securely. Attached to or surrounding the metal rod are the expansion sleeves, often crafted from materials like steel or other metals, designed to expand when the anchor is installed.

The working principle of an expansion anchor bolt is both ingenious and straightforward. To begin the installation process, a hole is drilled into the material where the anchor is needed. The diameter of this hole is predetermined, matching the specifications of the anchor bolt to ensure a tight fit. Once the hole is ready, the anchor bolt is inserted into it, with the expansion sleeves in a compressed state.

As the metal rod is tightened, either by turning a nut on the threaded end or through other means, the expansion sleeves begin to unfold. This unfolding is facilitated by a wedge mechanism or similar design that forces the sleeves outward. As the sleeves expand, they press firmly against the sides of the hole, creating a tight grip with the surrounding material. This grip is crucial as it prevents movement and provides a solid connection, ensuring that the anchor bolt remains securely in place.

The effectiveness of the expansion anchor bolt lies in this expansion action. By creating a mechanical interlock with the surrounding material, it can handle substantial loads and resist forces that might otherwise cause failure in less robust fastening systems. This makes expansion anchor bolts indispensable in applications requiring high levels of stability and connection strength.

Applications in Construction and Engineering

Expansion anchor bolts play a pivotal role in various fields of construction and engineering, ensuring the stability and safety of structures. These bolts are extensively employed in diverse applications, including building construction, bridge erection, and the assembly of heavy equipment. Their versatility allows them to be used in different environments and materials, such as concrete, steel, and masonry.

In the realm of building construction, expansion anchor bolts are essential for securing structural elements to concrete foundations. They provide a reliable connection that can withstand significant loads and stresses, contributing to the overall stability of buildings. For instance, they are commonly used to anchor steel beams, columns, and other critical components, ensuring that the structural framework remains intact under various conditions.

Bridge construction is another area where expansion anchor bolts are indispensable. These bolts are used to connect bridge components, such as girders and decks, to the supporting piers and abutments. Their ability to maintain a firm grip in concrete and steel ensures that the bridge can endure the dynamic loads and vibrations caused by traffic and environmental factors. This application highlights the importance of correct installation techniques, as improper installation can compromise the integrity of the entire structure.

In the assembly of heavy equipment, expansion anchor bolts provide the necessary stability to secure machinery to foundations or supporting structures. This is particularly crucial in industries such as manufacturing and mining, where equipment must remain firmly in place to operate safely and efficiently. The use of expansion anchor bolts in these settings underscores their capacity to handle high-stress environments and substantial loads.

Overall, expansion anchor bolts are vital components in construction and engineering due to their robustness and adaptability. Their ability to secure structures in various materials and under different conditions makes them indispensable for maintaining structural integrity. Ensuring proper installation is key to leveraging the full benefits of these bolts, as it guarantees the stability and safety of the connected elements over time.

Advantages and Best Practices for Installation

Expansion anchor bolts are highly regarded in the construction and engineering sectors due to their numerous advantages. One of the key benefits is their high load-bearing capacity, which makes them suitable for heavy-duty applications. Their reliability is another significant advantage, as these bolts provide a secure and stable connection that stands the test of time. Additionally, they are relatively easy to install, making them a preferred choice for many professionals.

To maximize the performance and safety of expansion anchor bolts, it is essential to adhere to best practices during installation. Proper hole preparation is a critical first step. The hole must be drilled to the correct diameter and depth, as specified by the bolt manufacturer. Using a hammer drill with a carbide-tipped bit can ensure precision and efficiency in this process.

Choosing the right type and size of anchor bolt for the specific application is equally important. Factors to consider include the load requirements, the material of the base, and environmental conditions. For instance, stainless steel anchor bolts may be preferred in corrosive environments, while zinc-coated bolts might be suitable for indoor applications.

Following manufacturer guidelines is crucial to achieving optimal results. These guidelines typically include detailed instructions on the installation process, recommended tools, and safety precautions. Ignoring these recommendations can compromise the performance and longevity of the anchor bolts.

Common mistakes to avoid during installation include over-tightening the bolts, which can cause damage to the threads or the base material, and under-tightening, which can result in insufficient holding power. Ensuring that the hole is clean and free of debris before inserting the bolt is also vital to prevent any obstructions that could affect the bolt's performance.

By adhering to these best practices, professionals can ensure the long-term durability and stability of connections made with expansion anchor bolts. Proper installation not only enhances the immediate performance but also contributes to the overall safety and reliability of the structure.
